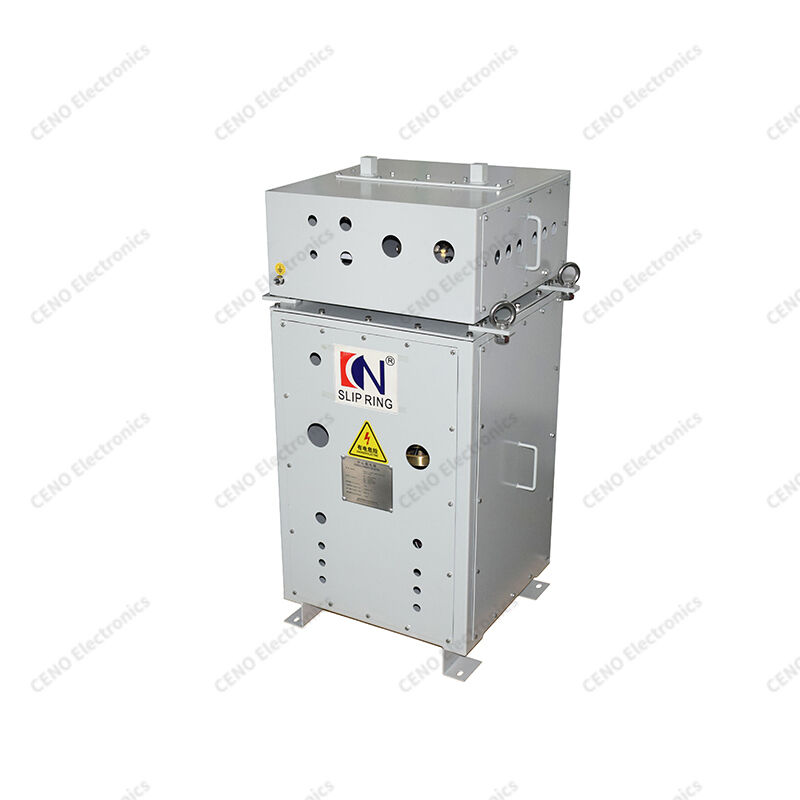

High-Power Slip Ring with Rugged Sealed Cabinet Design for Continuous Rotation
BHCN-C-07260-0360-02P3-12S is CENO Industrial High-Power Slip Ring (Central Collector) with a robust, cabinet-style electrical rotary joint designed for heavy-duty continuous rotation applications. It enables reliable transmission of high-current power and multi-channel control/communication signals, eliminating cable twist and tangling. Built with a sealed, split enclosure, it delivers exceptional protection against dust, moisture, and harsh industrial conditions, making it ideal for ports, wind turbines, metallurgy, and construction machinery.
Features
u High-Current Capacity
u Rugged Enclosure
u Long Service Life
u Easy Installation
u Safety Compliant
u Flexible Configuration
Applications
u Port Cranes
u Wind Turbines
u Metallurgy & Mining
u Construction Machinery
u Other Industrial Systems
Optional
u Protection Upgrade
u Signal Expansion
u Environmental Control
u Condition Monitoring
u Corrosion Resistance
u Mechanical Customization
Specification
|
BHCN-C-07260-0360-02P3-12S
|
Specification
|
|
Protection Rating
|
IP54
|
|
Operating Humidity
|
<90% (35°C)
|
|
Operating Temperature
|
-10°C ~ +45°C
|
|
Speed
|
0～1 rpm
|
|
|
|
Voltage
|
0~380V AC/DC
|
|
Current
|
6x260A + 1xPE(260A) + 3x60A
|
|
Dielectric Strength
|
≥1500V AC @ 50Hz
|
|
Insulation Resistance
|
500MΩ @ 500V DC
|
|
Contact Resistance Fluctuation
|
≤10mΩ (at 50 rpm)
|
|
Contact Material
|
Copper graphite
|
|
Wiring
|
Screw terminals
|
|
Maintenance
|
Periodic
|
|
|
|
Voltage
|
0~230V AC/DC
|
|
Current
|
2x16A + 12 signal
|
|
Dielectric Strength
|
>500V AC @ 50Hz
|
|
Insulation Resistance
|
500MΩ @ 500V DC
|
|
Contact Resistance Fluctuation
|
≤30mΩ (at 50 rpm)
|
|
Contact Material
|
Precious metal
|
|
Wiring
|
Junction box
|
|
Maintenance
|
Maintenance-free
|
|
|
|
Rotation Type
|
Ring rotates, brushes stationary
|
|
Mounting
|
Bolted at both rotor and stator ends
|
|
Housing Material
|
Q235 steel
|
|
Other
|
200W heater (220V) + thermostat
|
Outline drawing
