PCB-style Pancake Slip Ring with electric power and CAN signal for Robotic

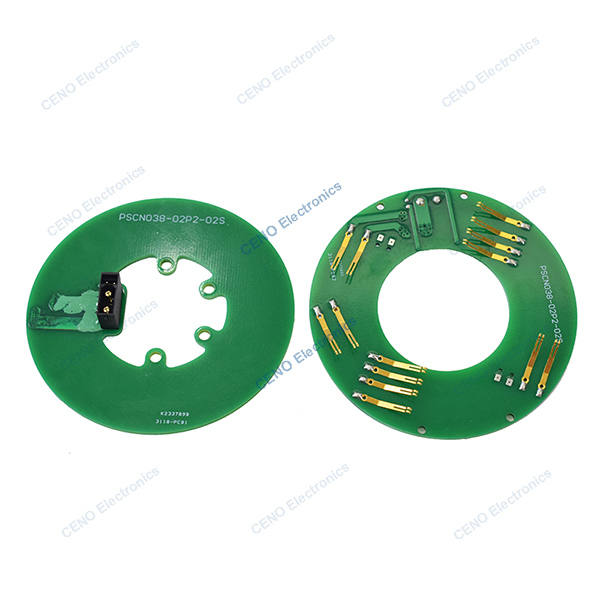

PSCN038-02P2-02S is CENO pancake slip ring with electric power and CAN signal. Compare with traditional cylindrical slip ring, pancake slip ring designed with unique structure, ultra-thin and compact. Simply put, pancake slip ring like as a rotating flat circuits board, with probes on top maintaining electrical connections. Core principle of pancake slip ring is use spring pressure and planar ring to achieve stable and reliable electrical connection. For more information please contact us.
Features
- Precious contact material to ensure long service life
- Achieve multifunctional, high-density integrated transmission
- Install easy & Free maintenance
Applications
- Automatic machine
- Turntable testing machine
- Packing equipment
- Robot arm or joint
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Inner / outer diameter
- Working speed & temperature
Specification
|
PSCN038-02P2-02S Specification
|
| Current & Circuits |
2 circuits * 10A; 2 circuits * Can signal |
| Rating Voltage |
0 ~ 100 VAC/VDC |
| Dielectric strength |
≥300VAC@50Hz |
| Isolation resistance |
≥100MΩ@100VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP00 |
| Operating speed |
0~80rpm |
| Inner diameter |
Ø38mm |
| Contact material |
Gold to gold |
| Housing material |
FR4 |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
