Low Temperature slip ring with Electric Power Rotary Join for Industry

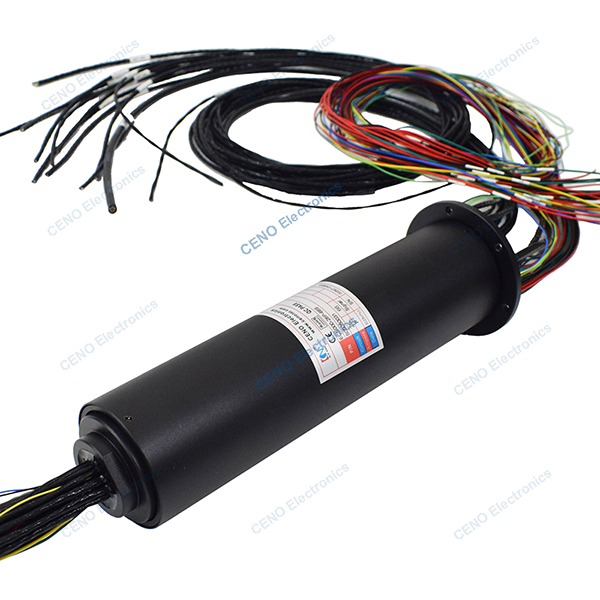

ECN000-28P-66S is CENO low temperature slip ring with multi-channel electric power and signal. Low temperature slip rings mainly depend on the selection of materials, structural design and manufacturing process. Compare with ordinary slip rings are not designed to take into account the severe challenges brought by low temperatures, while low temperature slip rings are specially designed to deal with these challenges. For more information please contact us.
Specification
| ECN000-28P-66S S pecification |
| Current & Circuits |
2 * 10A; 2 * 30A; 8 * 5A; 61 * Signal; 5 * Signal (spare) |
| Rating Voltage |
0 ~ 28 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC |
| Contact resistance wave |
≤ 10mΩ |
| Working temperature |
-40°C~+55°C; -50°C~+65°C |
| Working humidity |
93%RH |
| IP protection grade |
IP51 |
| Operating speed |
0~30rpm |
| Outer diameter |
Ø65mm |
| Contact material |
Precious metal |
| Housing material |
Aluminium Alloy |
| Lead wire length |
As customized |
| Rotation way |
Flange installation |
| Rotary torque |
≤1.0N*m |
Features
- Select special materials with good toughness and strength
- Stale insulation performance at low temperature & no brittle cracking
- Install easy & Free maintenance
Applications
- Robots in low-temperature
- Liquefied natural gal industry
- Superconducting equipment
- Cryogenic vacuum equipment
- Aerospace remote sensors
Optional
- Circuits, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline Drawing
