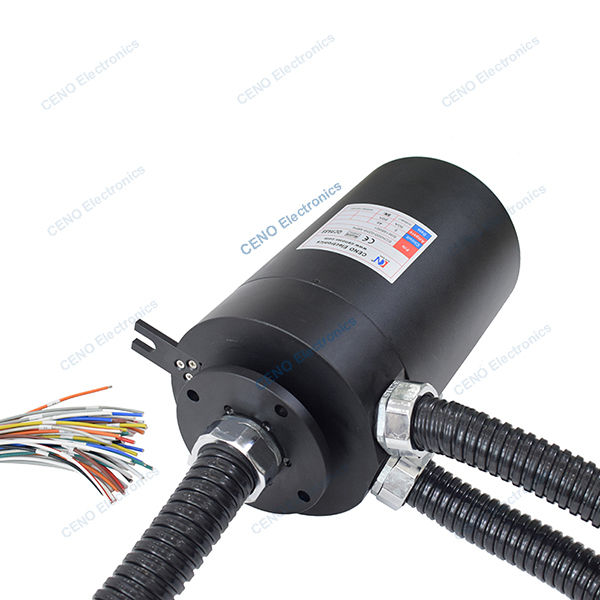

Electric Power Slip Ring with 50 circuits Electric rotary joint for industry
ECN000-0250-48P4 is CENO power slip ring with 48 circuits electric power for automatic machine. Power slip ring is an electro- mechanical device and can be used in any electro- mechanical system where requires unrestrained, intermittent or continuous rotation while transmitting power, electric signal or data. CENO is a high technology company with unique design and manufacturing capabilities. Trust us to solve your difficult problems when accuracy and performance really matter.
Specification
| ECN000-0250-48P4 |
Specification |
| Current & Circuits |
2 circuits * 50A; 48 circuits * 20A |
| Rating Voltage |
0 ~ 660 VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60%RH |
| IP protection grade |
IP54 |
| Operating speed |
0~10rpm |
| Outer diameter |
Ø185mm |
| Contact material |
Precious metal |
| Housing material |
Aluminium Alloy |
| Lead wire size |
As customized |
| Lead wire length |
As customized |
Features
- Quiet mechanical system operation
- Circuits 1 - 300 circuits are option
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Automatic machine
- Turntable testing machine
- Packing equipment
- Filling machinery
- Medical equipment
Optional
- Circuits, Voltage, Current
- Structure & outlet
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
