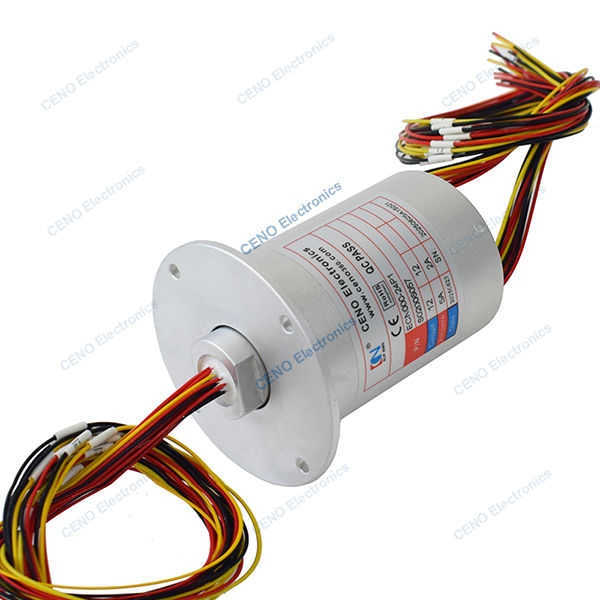

24 circuits Electric Power and Signal Slip Ring for Industrial System
ECN000-24P1 is CENO industrial slip ring combine with 24 circuits electric power and signals. CENO industry commonly used in high-end industrial electrical equipment or precision electronic equipment with multiple functions, high performance, high precision, and multiple continuous rotational movements. CENO industrial slip ring provide reliably transmission solution of power and signal for electrical equipment which perform complex rotational movement. For more information please contact us
Specification
| ECN000-24P1 |
Specification |
| Current & Circuits |
12 circuits * 5A; 12 circuits * 2A |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~300rpm |
| Outer diameter |
Ø56mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Lead wire size |
As customized |
| Lead wire length |
As customized |
Features
- Precious metal contact material and multi-points connect and no loss
- Compact structure can combine kinds data, signal and electric power
- Install easy & Free maintenance
Applications
- Automatic machine
- Aircraft models
- Cable equipment
- Special vehicles and ships
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline Drawing
