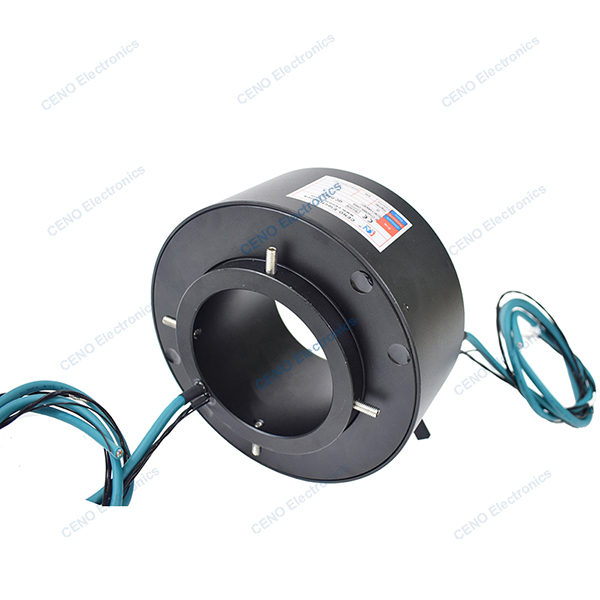

Through Bore Industrial Slip Ring with Electric Power and CANBus Signal
ECN095-08S is CENO industry slip ring have through hole in center and combine circuits signal and one channel CANBUS signal, that is designed for industrial system. Through hole is a kind of classical design for easy and firmly installed on the rotation main shaft by screws, the other side installed by anti-rotation tab on machine stator side. Slip ring continuous rotating and transmitting signal and power from one side to other side. For more information please contact us.
Specification
|
ECN095-08S
|
Specification |
| Current & Circuits |
1 * CanBus; 1 * Signal; 4 * Signal |
| Rating Voltage |
0 ~ 24 VAC/VDC |
| Dielectric strength |
≥300VAC@50Hz |
| Isolation resistance |
≥100MΩ@300VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~50rpm |
| Inner diameter |
Ø95mm |
| Outer diameter |
Ø185mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Rotation way |
Fix up stator side with anti-rotation tab |
| Lead wire length |
As customized |
Features
- Through hole 3mm-980mm optional
- Circuits 1 - 300 circuits are option
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Automatic machine
- Turntable testing machine
- Packing equipment
- Filling machinery
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline Drawing
